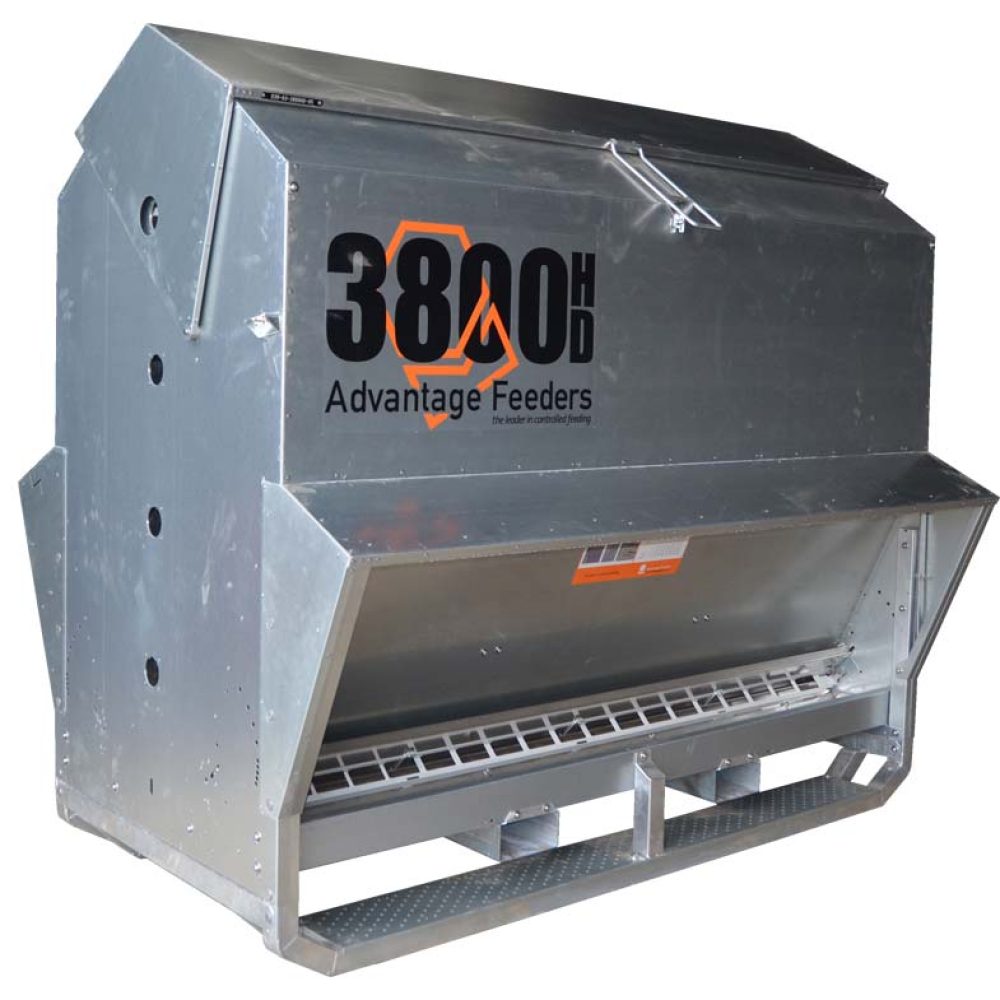

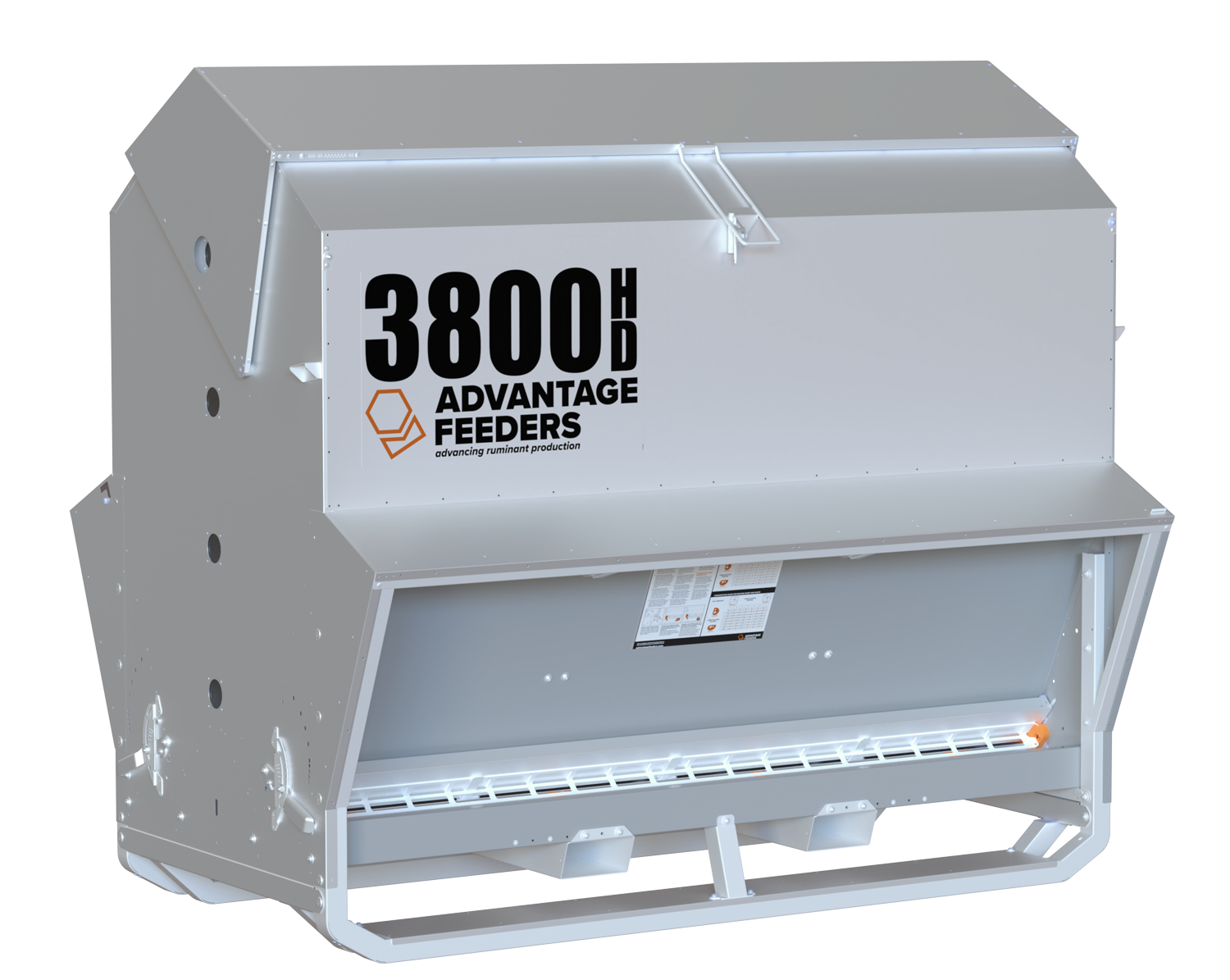

3800HD

Categories: ,

Stronger, Last Longer, More control

  • Stainless Steel parts
  • Precise 3 way saliva restriction system
  • 435kg
  • 2 year warranty*

Description

Weight: 435kg
Dimensions at sheep height:
2465 x 1675 x 2170 (LxWxH)
Dimensions at cattle height:
2465 x 1675 x 2370 (LxWxH)
Dimensions at extended cattle height:
2465 x 1675 x 2570 (LxWxH)
Feed Volume:
3800 litres
Feed weight – wheat/lupins:
3000kg
Feed weight – barley/pellets:
2400kg
Feed weight – oats:
2000kg
Ewes or lambs (paddock): 200-250
Ewes or lambs (feedlot):
120-150
Ewes and lambs (creep feeding):
200-250 Combined
Cattle or calves (paddock):
40-50
Cattle (feedlot):
30-35
Goats (paddock):
200-250
Deer (paddock): 120-150
Pigs:
120-150
  • Reinforced stainless steel troughs
  • Reinforced stainless steel upper adjusters
  • Reinforced stainless steel lower adjusters
  • 2x adjuster guards standard
  • Adjuster guard housing when not in use
  • 4x 60mm SHS skids
  • High stability with hopper wholly over skids
  • 2x 65mm SHS braces between the skids
  • Hot gal dipped skids
  • Vertical brace in the centre of the skids
  • Anti-slip platform between skids
  • Laser cut corners in skids to prevent rust
  • Channel reinforced trough
  • Z275 sheetmetal
  • 45 degrees angled trough
  • 100mm feed flow area
  • Rain protection reinforcing
  • Side wall bracing
  • Channel roof pivot bracket
  • 2x 200Ă—100 RHS tine guides
  • Adjustable width tine guides
  • 6x adjuster braces
  • Dual tab adjuster braces
  • 4x locking bolts on the lower adjusters
  • Adjuster guard locking system
  • Dual positioned adjuster guard for dusty feeds
  • 8x 75mm round sight glasses
  • Vertical side wall bracing for easy feed flow
  • 2x volume stickers
  • Adjust feeder height in just 15 minutes
  • Cleaning tool supplied
  • Tube spanner supplied
  • Secure housing for tools
  • 2380mm trough length
  • Painted notch system on the adjusters
  • Drop lock pin roof locking system
  • Deep 110mm trough depth
  • Gutters on side walls drain out of feeder
  • Weather protection over the troughs
  • Reinforced roof edges
  • Mineral attachment option
  • Calf creep feeding gate option
  • Lamb creep feeding panel option
  • 2 year extended warranty
  • 30 day money back guarantee
  • Standard operating procedure supplied
  • User guide supplied
  • Trial reports available
  • Purchase flat-packed or assembled
