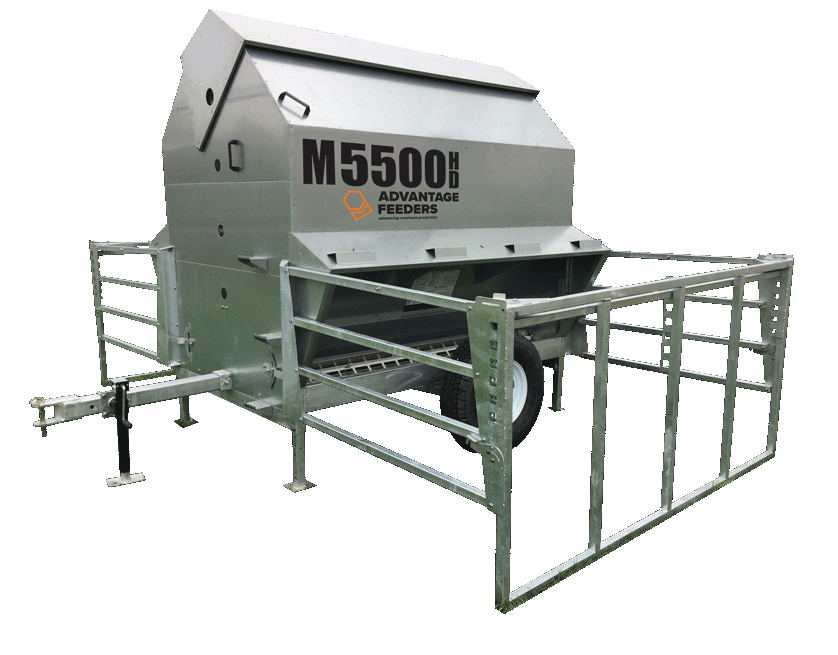

M5500HD

Categories: ,

Description

  • Reinforced stainless steel troughs
  • Reinforced stainless steel upper adjusters
  • Reinforced stainless steel lower adjusters
  • 2x adjuster guards standard
  • Adjuster guard housing when not in use
  • 4x 40mm SHS stands
  • High stability with hopper wholly over wheels
  • Load sharing suspension
  • Three axle height options
  • Channel reinforced trough
  • Z275 sheetmetal
  • 45 degrees angled trough
  • 100mm feed flow area
  • Rain protection reinforcing
  • Side wall bracing
  • Channel roof pivot bracket
  • 6x adjuster braces
  • Dual tab adjuster braces
  • 4x locking bolts on the lower adjusters
  • Adjuster guard locking system
  • Dual positioned adjuster guard for dusty feeds
  • 8x 75mm round sight glasses
  • Vertical side wall bracing for easy feed flow
  • 2x volume stickers
  • Adjuster feeder height in just 45 minutes
  • Cleaning tool supplied
  • Tube spanner supplied
  • Secure housing for tools
  • 4x new tyres
  • Pivot up jockey wheel bracket
  • Cast iron wheel on jockey wheel
  • 2x safety chains supplied
  • 2380mm trough length
  • Painted notch system on the adjusters
  • Drop lock pin roof locking system
  • Deep 110mm trough depth
  • Gutters on side walls drain out of feeder
  • Weather protection over the troughs
  • Reinforced roof edges
  • Mineral attachment option
  • Calf creep feeding gate option
  • Lamb creep feeding panel option
  • Rubber mat option
  • 2 year extended warranty
  • 30 day money back guarantee
  • Standard operating procedure supplied
  • User guide supplied
  • Trial reports available
  • Purchase flat-packed or assembled
Weight: 680kgs
Dimensions at cattle height :
13650 x 2440 x 2620 (LxWxH)
Feed Volume: 5500 litres
Feed weight – wheat/corn: 4900 kgs
Feed weight – barley/pellets: 4100 kgs
Feed weight – oats: 3400 kgs
Tyre size: 235/75R16
Cattle: 50
Sheep: n/a
Goats: n/a
Deer: n/a
Pigs: n/a
