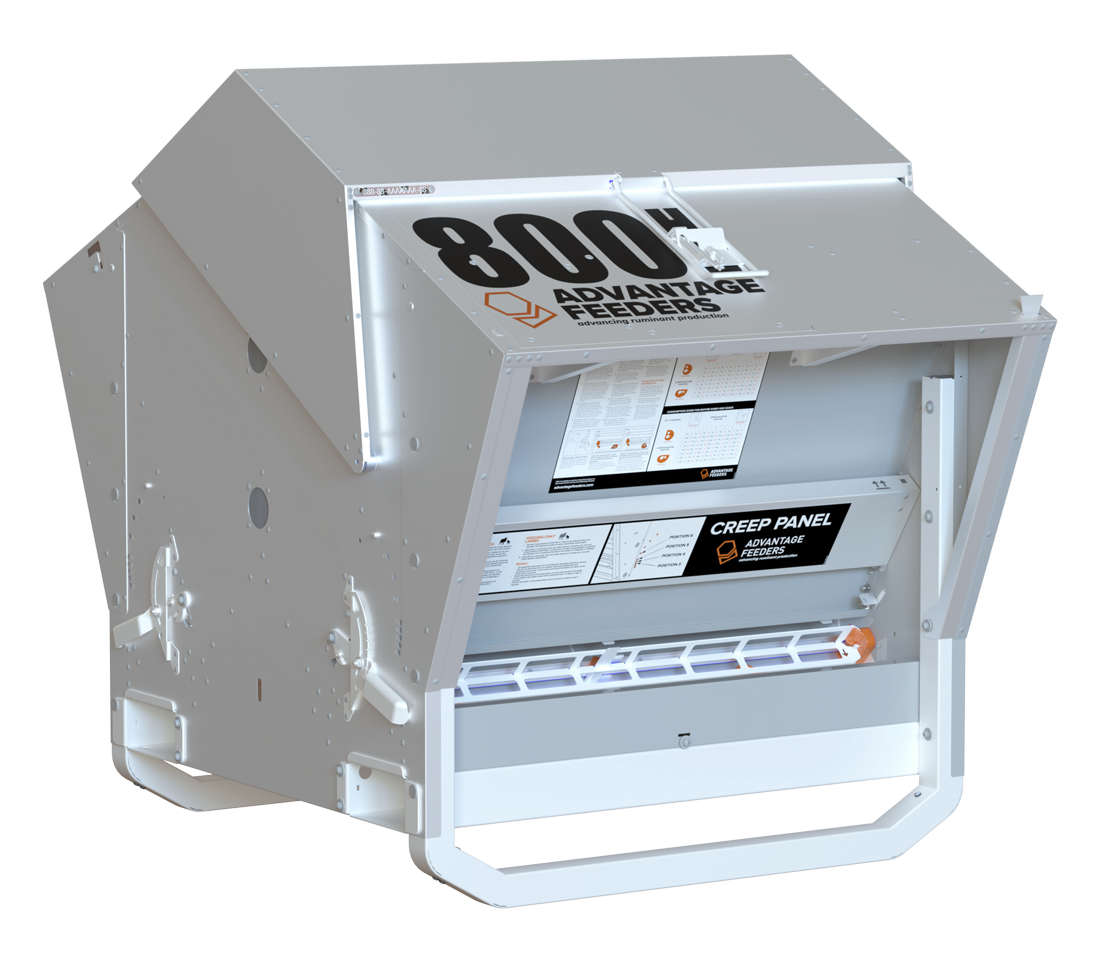

800HD
Stronger, Last Longer, More control
- Stainless Steel parts
- Precise 3 way saliva restriction system
- 2 year warranty*
| Weight: | 205kg |
|
Dimensions at sheep height:
|
1215 x 1675 x 1440 (LxWxH)
|
|
Dimensions at cattle height:
|
1215 x 1675 x 1640 (LxWxH)
|
|
Dimensions at extended cattle height:
|
1215 x 1675 x 1840 (LxWxH)
|
|
Feed Volume:
|
800 litres
|
|
Feed weight – wheat/lupins:
|
600kg
|
|
Feed weight – barley/pellets:
|
500kg
|
|
Feed weight – oats:
|
425kg
|
| Ewes or lambs (paddock): | 100-125 |
| Ewes or lambs (feedlot): |
60-75
|
| Ewes and lambs (creep feeding): |
100-125 Combined
|
| Cattle or calves (paddock): |
20-25
|
| Cattle (feedlot): |
15-20
|
| Goats (paddock): |
100-125
|
| Deer (paddock): | 60-75 |
| Pigs: | 60-75 |
- Reinforced stainless steel troughs
- Reinforced stainless steel upper adjusters
- Reinforced stainless steel lower adjusters
- 2x adjuster guards standard
- Adjuster guard housing when not in use
- 2x 60mm SHS skids
- High stability with hopper wholly over skids
- Hot gal dipped skids
- Laser cut corners in skids to prevent rust
- Channel reinforced trough
- Z275 sheetmetal
- 45 degrees angled trough
- 100mm feed flow area
- Rain protection reinforcing
- Side wall bracing
- Channel roof pivot bracket
- 2x 200×100 RHS tine guides
- 2x adjuster braces
- Dual tab adjuster braces
- 2x locking bolts on the lower adjusters
- Adjuster guard locking system
- Dual positioned adjuster guard for dusty feeds
- 4x 75mm round sight glasses
- Vertical side wall bracing for easy feed flow
- 2x volume stickers
- Adjust feeder height in just 15 minutes
- Cleaning tool supplied
- Tube spanner supplied
- Secure housing for tools
- 1160mm trough length
- Painted notch system on the adjusters
- Drop lock pin roof locking system
- Deep 110mm trough depth
- Gutters on side walls drain out of feeder
- Weather protection over the troughs
- Reinforced roof edges
- Mineral attachment option
- Calf creep feeding gate option
- Lamb creep feeding panel option
- Rubber mat option
- 2 year extended warranty
- 30 day money back guarantee
- Standard operating procedure supplied
- User guide supplied
- Trial reports available
- Purchase flat-packed or assembled
