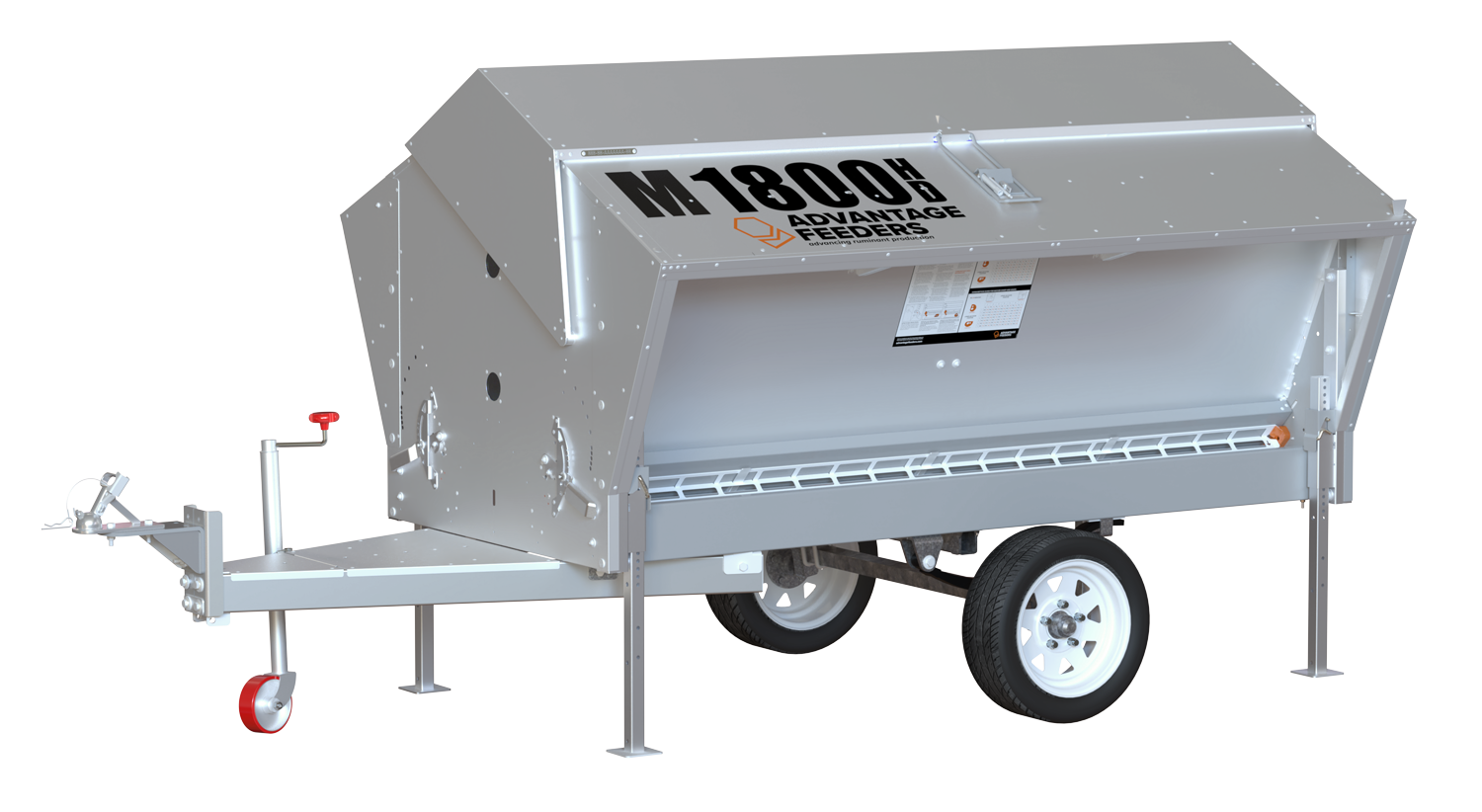

M1800HD
Stronger, Last Longer, More control
- Stainless Steel parts
- Precise 3 way saliva restriction system
- Load Sharing Suspension
- Tow at 100km/h
- 2 year warranty*
| Weight: | 465kg |
|
Dimensions at sheep height:
|
3610 x 1675 x 1540 (LxWxH) |
|
Dimensions at cattle height:
|
3610 x 1675 x 1740 (LxWxH) |
| Feed Volume: | 1800 litres |
| Feed weight – wheat/lupins: | 1400kg |
| Feed weight – barley/pellets: | 1150kg |
| Feed weight – oats: | 900kg |
| Axle rating: | 1500kg |
| Spring Rating: | 1500kg |
| Tyre rating: | 1850kg |
| Tyre size: | 195/55R13C |
| Coupling rating: | 2000kg |
| Ewes or lambs (paddock): | 200-250 |
| Ewes or lambs (feedlot): |
120-150
|
| Ewes and lambs (creep feeding): |
200-250 combined
|
| Cattle or calves (paddock): |
40-50
|
| Cattle (feedlot): | 30-35 |
| Goats (paddock): | 200-250 |
| Deer (paddock): | 120-150 |
| Pigs: | 120-150 |
- Reinforced stainless steel troughs
- Reinforced stainless steel upper adjusters
- Reinforced stainless steel lower adjusters
- 2x adjuster guards standard
- Adjuster guard housing when not in use
- 4x 40mm SHS stands
- High stability with hopper wholly over wheels
- Spring suspension
- Three axle height options
- Channel reinforced trough
- Z275 sheetmetal
- 45 degrees angled trough
- 100mm feed flow area
- Rain protection reinforcing
- Side wall bracing
- Channel roof pivot bracket
- 6x adjuster braces
- Dual tab adjuster braces
- 4x locking bolts on the lower adjusters
- Adjuster guard locking system
- Dual positioned adjuster guard for dusty feeds
- 4x 75mm round sight glasses
- Vertical side wall bracing for easy feed flow
- 2x volume stickers
- Adjuster feeder height in just 30 minutes
- Cleaning tool supplied
- Tube spanner supplied
- Secure housing for tools
- 2x new tyres
- Pivot up jockey wheel bracket
- Cast iron wheel on jockey wheel
- 2x safety chains supplied
- 2380mm trough length
- Painted notch system on the adjusters
- Drop lock pin roof locking system
- Deep 110mm trough depth
- Gutters on side walls drain out of feeder
- Weather protection over the troughs
- Reinforced roof edges
- Mineral attachment option
- Calf creep feeding gate option
- Lamb creep feeding panel option
- 2 year extended warranty
- 30 day money back guarantee
- Standard operating procedure supplied
- User guide supplied
- Trial reports available
- Purchase flat-packed or assembled
