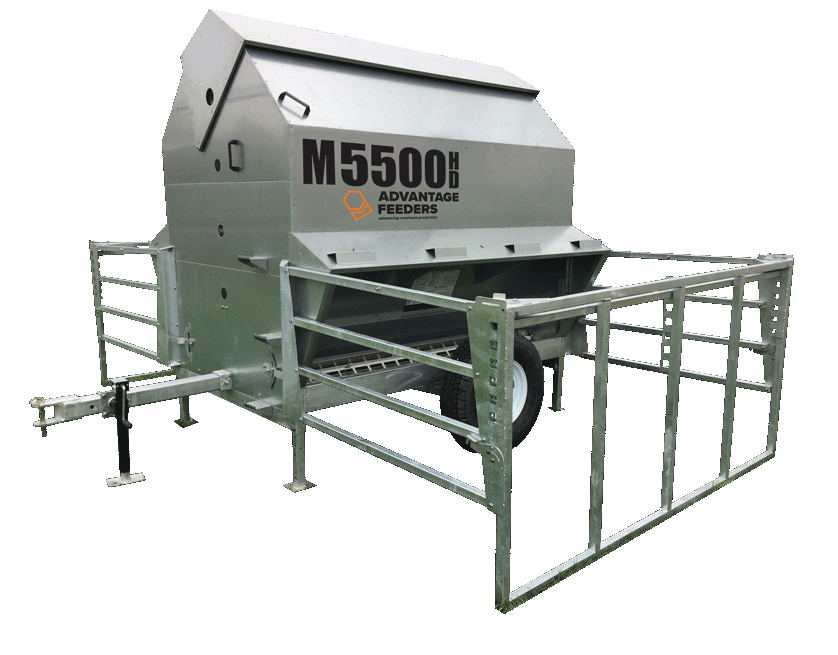

M5500HD
Stronger, Last Longer, More control
- Stainless Steel parts
- Precise 3 way saliva restriction system
- 2 year warranty*
| Weight: | 680kg |
|
Dimensions at cattle height:
|
3690 x 2395 x 2620 (LxWxH) |
| Feed Volume: | 5500 litres |
| Feed weight – wheat/lupins: | 4350kg |
| Feed weight – barley/pellets: | 3500kg |
| Feed weight – oats: | 2900kg |
| Tyre size: | 235/75R16 |
| Cattle: | 50 |
- Reinforced stainless steel troughs
- Reinforced stainless steel upper adjusters
- Reinforced stainless steel lower adjusters
- 2x adjuster guards standard
- Adjuster guard housing when not in use
- 4x 40mm SHS stands
- High stability with hopper wholly over wheels
- Load sharing suspension
- Three axle height options
- Channel reinforced trough
- Z275 sheetmetal
- 45 degrees angled trough
- 100mm feed flow area
- Rain protection reinforcing
- Side wall bracing
- Channel roof pivot bracket
- 6x adjuster braces
- Dual tab adjuster braces
- 4x locking bolts on the lower adjusters
- Adjuster guard locking system
- Dual positioned adjuster guard for dusty feeds
- 8x 75mm round sight glasses
- Vertical side wall bracing for easy feed flow
- 2x volume stickers
- Adjuster feeder height in just 45 minutes
- Cleaning tool supplied
- Tube spanner supplied
- Secure housing for tools
- 4x new tyres
- Pivot up jockey wheel bracket
- Cast iron wheel on jockey wheel
- 2x safety chains supplied
- 2380mm trough length
- Painted notch system on the adjusters
- Drop lock pin roof locking system
- Deep 110mm trough depth
- Gutters on side walls drain out of feeder
- Weather protection over the troughs
- Reinforced roof edges
- Mineral attachment option
- Calf creep feeding gate option
- Lamb creep feeding panel option
- Rubber mat option
- 2 year extended warranty
- 30 day money back guarantee
- Standard operating procedure supplied
- User guide supplied
- Trial reports available
- Purchase flat-packed or assembled
